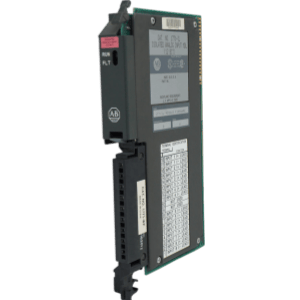

Allen Bradley 1771-IL Analog Input Module with 16-bit Resolution -10 to 10 Volts DC

Product Categories
AMIKON LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Allen Bradley 1771-IL Analog Input Module with 16-bit Resolution -10 to 10 Volts DC

  • 1
  • 2
  • 3

Brand Name : Allen Bradley

Model Number : 1771-IL

Place of Origin : USA

MOQ : 1

Price : 66USD

Payment Terms : T/T

Supply Ability : in stock

Delivery Time : 2-3 work days

Packaging Details : Brand new and original

Manufacturer : Allen Bradley

Resolution : 16-bit binary over full range

Backplane Current : 1.3 Amperes

Internal Scan Rate : 50 milliseconds for 8 channels

Voltage Range : -10 to 10 Volts DC

Current Range : -20 to 20 mA

Typical AC Signal Delay (Off) : 24 (+/- 10) ms

Typical DC Signal Delay (Off) : 20 (+/- 9) ms

Contact Now

Allen Bradley 1771-IL Analog Input Module
Allen Bradley 1771-IL Analog Input Module with 16-bit Resolution -10 to 10 Volts DC
The Allen Bradley 1771-IL Analog Input Module supports both unipolar and bipolar signal formats. Unipolar operation represents values that begin at zero and increase positively, while bipolar operation handles signals with both positive and negative values, where the maximum positive value has a corresponding negative complement. Signal conversion is performed with 16-bit binary resolution over the full input range, delivering precise analog-to-digital conversion for process monitoring and control applications.
Allen Bradley 1771-IL Analog Input Module with 16-bit Resolution -10 to 10 Volts DC Allen Bradley 1771-IL Analog Input Module with 16-bit Resolution -10 to 10 Volts DC
Technical Specifications
Description Series A Series B Series C
Data Table Usage 8 in / 8 out / 12 read words / 19 write words 8 in / 8 out / 15 read words / 37 write words
Resolution 12-bit binary 16-bit binary
Sample Time No RTS, Default 500ms; range 500ms to 3.1s in 100ms increments No RTS, Default 50ms; range 50ms to 3.1s in 100ms increments
Calibration Mechanical adjustments for gain, offset and zero offset Auto-calibration (offset and gain); Zero offset and gain adjustment for each channel via programming terminal
Accuracy 0.1% of full scale range @ 25°C Voltage: Typical 0.01%, Max 0.05% @ 25°C
Current: Typical 0.06%, Max 0.1% @ 25°C (Includes 0.05% when using internal resistor)
Common Mode Rejection >120 dB @ 60Hz and 1K ohm source imbalance >150 dB @ 60Hz and 1K ohm source imbalance
Normal Mode Rejection >120 dB @ 60Hz >60 dB @ 60Hz
Input Overvoltage Protection ±40V peak, continuous Voltage mode: 140V AC (rms) continuous
Current mode: 8V DC continuous
Backplane Current 1.3A @ +5V 1.0A @ +5V 1.1A @ +5V
Power Dissipation 6.5 Watts maximum 5.0 Watts maximum 5.5 Watts maximum
Thermal Dissipation 22.2 BTU/hr maximum 17.1 BTU/hr maximum 18.8 BTU/hr maximum
Allen Bradley 1771-IL Analog Input Module with 16-bit Resolution -10 to 10 Volts DC
